Hi. I have a behavior with my Notecard that has been powered on for approx 7 days on battery. Its set up to sync periodically and also track periodic. However, the data that is syncs is several days old.
Hey @TobiasR,
From this data I’m guessing that the Notecard has not been able to make a GPS fix for several days. You can confirm this by connecting your Notecard to the In-Browser Terminal and running a card.location request. The time returned from this request will have the most-recent location your Notecard has acquired.
If that is the case we’ll need to figure out why your Notecard hasn’t been able to make a GPS fix, but we’ll start by seeing what data you get back.
TJ
Thank you for quick reply.
Indeed, in the console, the location request returns the same data, from 2025-08-08. Turning on card.trace I could se it was saying something about GPS timeout.
I did FW update to latest LTS, then the card rebooted and got a new location fix pretty much instant.

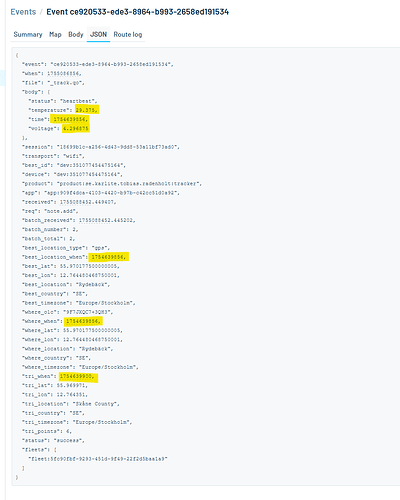

But as seen in my screenshots its not only the location-data that is old. Also Volt and Temp.
I get the same now:
S107:38.47 sync: next wake-up due in 14m 20s to sync (outbound & inbound work pending)
S117:15.13 journey: beginning new journey
S117:15.13 sync: wakeup: gps poll
S117:15.14 _log.qo: gpsmax: requesting initial GPS refresh: period:300s c:0 f:0 m:1
S117:15.14 sync: wakeup: gps initiate
G117:15.30 accel: movements:6 free-falls:0 5s:1000000000000000000000000000000000000000000000000
G117:43.29 accel: movements:7 free-falls:0 5s:1000010000000000000000000000000000000000000000000
G118:30.25 journey: unless we start moving, the journey will end in 253 secs
G118:49.03 journey: unless we start moving, the journey will end in 235 secs
G118:49.03 _log.qo: gpsmax: cancelling GPS seek: no signal after 90 seconds
G118:49.06 track: 2025-08-13T15:30:01Z added note 1755098908:1 (4.73)
G118:49.07 sync: wakeup: gps cancel
The board is located in the exact same spot where it got GPS-position when rebooting after firmware update.

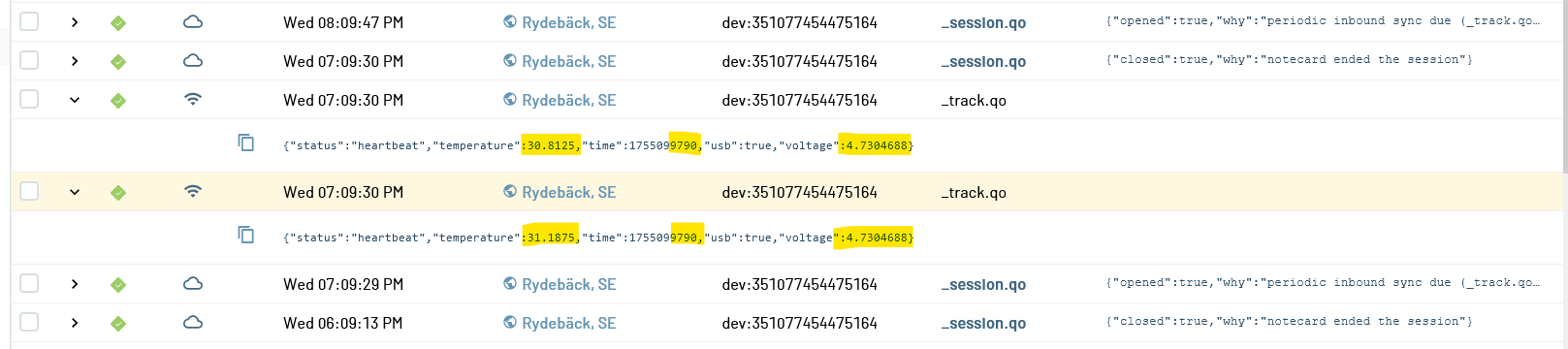

But as seen in my screenshots its not only the location-data that is old. Also Volt and Temp.
The voltage and temperature readings in those screenshots are current, and were taken at the timestamp indicated in the when field. The time in the body just lists the time of the last GPS/GNSS fix.
The board is located in the exact same spot where it got GPS-position when rebooting after firmware update.
Is your device indoors? In general, you need to have a clear view of the sky for Notecard to reliably get a GPS/GNSS fix. Personally I can usually get a fix when I have my Notecard near a window, but I have to take the device outside if I want it to reliably get a location.
You could consider using an active antenna to get a more reliable connection. See our guide on GPS/GNSS antennas for more information.
TJ
Thank you.
From https://dev.blues.io/api-reference/system-notefiles/#track-qo
As you say, the temp and voltage reading is from when the last position was fixed (“when”), not when the actual tracking event occurred as stated in the doc’s, if I understand it correctly.
Yes, the device is indoors, by the window. It has no problems getting a GPS fix on that spot after a reboot or setting it in continuous position mode. Its in periodic/track it stops getting position after a while and outputs " _log.qo: gpsmax: cancelling GPS seek: no signal after 90 seconds".
More on the issue not getting GPS fix when in periodic mode. As seen bellow, the card does “gpsmax: cancelling GPS seek: no signal after 90 seconds” when in periodic mode (its been doing that for several days). As soon as a fire a manual “sync” its gets position.
T278:43.15 lwip: IP deactivated to conserve energy
S285:14.09 journey: beginning new journey
S285:14.09 sync: wakeup: gps poll
S285:14.10 _log.qo: gpsmax: requesting initial GPS refresh: period:300s c:0 f:0 m:1
S285:14.10 sync: wakeup: gps initiate
S285:14.18 sync: next wake-up due in 15m 0s to check on journey’s progress
G285:14.26 accel: movements:10 free-falls:0 5s:10000000000000000000000000000000
G285:57.49 journey: unless we start moving, the journey will end in 257 secs
G286:12.57 journey: unless we start moving, the journey will end in 242 secs
G286:27.64 journey: unless we start moving, the journey will end in 227 secs
G286:42.70 journey: unless we start moving, the journey will end in 212 secs
G286:44.59 _log.qo: gpsmax: cancelling GPS seek: no signal after 90 seconds
G286:44.68 track: 2025-08-13T18:17:57Z added note 1755108987:1 (4.73)
G286:44.68 sync: wakeup: gps cancel
G286:44.69 _log.qo: gpsmax: requesting initial GPS refresh: period:300s c:0 f:0 m:0
G286:44.69 sync: wakeup: gps initiate
S286:44.70 sync: next wake-up due in 15m 0s to check on journey’s progress
G286:58.82 journey: unless we start moving, the journey will end in 196 secs
G287:17.60 journey: unless we start moving, the journey will end in 177 secs
G287:36.38 journey: unless we start moving, the journey will end in 158 secs
sync
R287:47.57 sync: wakeup: diag sync
S287:47.59 transport: using celluar transport because GPS is needed
S287:47.59 transport: switched from wifi: to modem:
S287:47.59 transport: using celluar transport because GPS is needed
S287:47.63 sync: connect requested by explicit sync request (DATA)
S287:47.65 connect: 4.70V 29.06C before comms power-on (2025-08-13T18:19:00Z UTC)
S287:47.65 transport: using celluar transport because GPS is needed
S287:47.65 apn: for a.notefile.net using apn a-notehub.com.attz
S287:47.66 sync: wireless: domain a.notefile.net using APN a-notehub.com.attz
S287:47.66 sync: wireless: starting communications {wait-module} {connecting} {transport}
S287:47.68 modem: beginning power-on sequence
S287:52.39 modem: *************** ON ***************
S287:52.39 sync: wireless: modem now ON {modem-on}
S287:52.74 journey: unless we start moving, the journey will end in 142 secs
S287:52.79 env: updated _state_vars_net
S287:52.80 env: dfu updated
M288:09.56 modem: wireless: waiting for wireless service {wait-service} {connecting} {transport}
M288:10.46 modem: wireless: waiting for wireless service 23 sec [----] {cell-registration-wait}
M288:13.48 modem: wireless: waiting for data service {wait-data} {connecting} {transport}
M288:13.57 lwip: tcp task activated
M288:13.72 S288:13.78 checkpointAllNoteboxes {checkpointed} _env.dbs
modem: wireless: network registration took 26 sec
M288:13.79 modem: wireless: connected {connected-closed} {transport}
M288:13.79 sync: wakeup: modem connected
S288:13.89 lwip: setting wideband timeouts
T288:14.80 tcpip: network: IP local:10.68.60.169 remote:10.64.64.64
T288:14.81 tcpip: network: IP connect_status: connected (0)
S288:14.81 sync: network: IP connect: waiting for connection for 0 sec (sent:191 rcvd:213)
S288:14.91 sync: network: IP socket connect: success in 1 sec (sent:236 rcvd:258)
S288:14.92 lwip: opened
S288:14.92 sync: network: notebox open PPP (sent:236 rcvd:258) {socket-ip-init}
S288:14.92 sync: project: opening notehub session using product UID product:se..tobias.radenholt:tracker
S288:14.93 sync: notehub: asking discovery service to assign a notehub session handler
S288:14.93 sync: network: opening unidirectionally-authenticated secure session to a.notefile.net:8086 {socket-open-session}
S288:14.94 sync: network: resolving tracker.radenholt.tobias..se.product.notefile.net
S288:15.57 sync: network: resolving a.notefile.net
S288:15.88 sync: network: DNS lookup of a.notefile.net yielded 10.0.66.13 {socket-dns-success}
S288:15.89 sync: network: connecting to 10.0.66.13:8086 {socket-connecting}
S288:16.20 sync: network: connected to 10.0.66.13 (sent:94 rcvd:113) {socket-connected}
S288:16.31 hsm: secure element enabled
S288:16.41 sync: network: TLS using ECC curve NIST P384
S288:16.41 sync: network: TLS cert issuer: /C=NL/O=STMicroelectronics nv/CN=STM STSAFE-A PROD CA 25
S288:16.42 sync: network: TLS cert subject: /CN=NB1/serialNumber=0209a02ba039dc52c60139
S288:16.42 sync: network: connect using TLS {socket-tls-connecting}
S288:17.01 sync: network: TLS is verifying the service
S288:17.03 sync: network: TLS domain (a.notefile.net) matches hub’s certificate (.notefile.net) through wildcard
S288:18.27 sync: network: connected using TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 {socket-tls-connected}
S288:18.27 hsm: secure element disabled
S288:18.28 sync: network: tls authenticated (sent:950 rcvd:2887) {socket-tls}
S288:18.28 sync: network: session opened {socket-opened-session}
S288:18.29 tower: req: 240,1,807,26352160,-72,16,-95,-9,lte,0,2,89011704274021110862,a-notehub.com.attz,10.68.60.169
S288:18.29 ntn: config pv1,0,chacha20-poly1305,(64)
S288:18.30 discover session handler for dev:351077454475164 product:se.e.tobias.radenholt:tracker
S288:19.23 sync: network: request socket shutdown {socket-disconnected}
S288:19.23 sync: network: session closed {socket-closed-session}
S288:19.27 sync: notehub: discovery service assigned a session handler
S288:19.27 ntn: handler 216.245.146.112:8089,256,YN,10TPM,1,c32db66fdb45
S288:19.27 sync: notehub: time is behind local time by -3 seconds
S288:19.28 notehub time: 1755109175
S288:19.28 sync: notehub: session ticket issued for 604803 sec (now:1755109172 expires:1755713975)
S288:19.29 sync: network: opening unidirectionally-authenticated secure session to 10.0.34.13:31566 {socket-open-session}
S288:19.29 sync: network: connecting to 10.0.34.13:31566 {socket-connecting}
S288:19.60 sync: network: connected to 10.0.34.13 (sent:138 rcvd:45) {socket-connected}
S288:19.71 hsm: secure element enabled
S288:19.82 sync: network: TLS using ECC curve NIST P384
S288:19.82 sync: network: TLS cert issuer: /C=NL/O=STMicroelectronics nv/CN=STM STSAFE-A PROD CA 25
S288:19.83 sync: network: TLS cert subject: /CN=NB1/serialNumber=0209a02ba039dc52c60139
S288:19.83 sync: network: connect using TLS {socket-tls-connecting}
S288:20.40 sync: network: TLS is verifying the service
S288:20.43 sync: network: TLS domain (a.notefile.net) matches hub’s certificate (.notefile.net) through wildcard
S288:21.68 sync: network: connected using TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 {socket-tls-connected}
S288:21.68 hsm: secure element disabled
S288:21.69 sync: network: tls authenticated (sent:951 rcvd:2886) {socket-tls}
S288:21.69 sync: network: session opened {socket-opened-session}
S288:21.69 tower: req: 240,1,807,26352160,-72,16,-95,-9,lte,0,2,89011704274021110862,a-notehub.com.attz,10.68.60.169
S288:21.70 sync: notehub: opened notehub {notehub-connected}
S288:21.70 sync: sync triggered by explicit sync request (_track.qo _env.dbs)
S288:21.71 sync: work: begin (anything pending) {sync-begin}
S288:21.71 sync: request: get notebox change summary
S288:22.20 tower: rsp: 9F7JXQ63+924W|SE|Europe/Stockholm|CEST|120|Skåne County
S288:22.20 407 req + 62 rsp = 469 byte network transaction
S288:22.24 sync: work to be done:
S288:22.24 upload _env.dbs
S288:22.25 upload _track.qo
S288:22.29 checkpointAllNoteboxes {checkpointed} _notefiles.json
I288:22.30 inbound: listening for notehub changes
S288:22.44 sync: work: upload _env.dbs (1 changes) {sync-get-local-changes}
S288:22.44 sync: request: merge notefile: _env.dbs
S288:22.82 274 req + 1 rsp = 275 byte network transaction
S288:22.90 sync: work: upload _track.qo (1 changes) {sync-get-local-changes}
S288:22.91 sync: request: merge notefile: _track.qo
S288:23.31 607 req + 1 rsp = 608 byte network transaction
S288:23.31 purge _track.qo:
S288:23.32 1 notes (0 stable, 0 queued, 1 tombstones)
S288:23.32 → 0 notes (0 stable, 0 queued, 0 tombstones)
S288:23.47 sync: work to be done:
S288:23.47 upload _env.dbs
S288:23.48 upload _track.qo
S288:23.54 deleting /data/_track-qo.000
S288:23.54 sync: work: completed {sync-end}
S288:23.55 sync: advancing last sync time from 18:09:44Z to 18:19:36Z
S288:23.55 journey: unless we start moving, the journey will end in 111 secs
S288:23.73 lwip: waiting for mbox to be idle (msgs:0 queues:2 sems:1 mutexes:1)
S288:24.29 sync: network: request socket shutdown {socket-disconnected}
S288:24.29 sync: network: session closed {socket-closed-session}
S288:24.30 sync: notehub: closed notehub {notehub-disconnected}
S288:24.30 lwip: sending RST to remote host packet:10840 ackno:4090045482
S288:24.83 lwip: closed
S288:24.83 sync: network: LWIP terminated (sent:74 rcvd:17) {socket-ip-term}
S288:24.83 lwip: tcp task deactivated (msgs:0 queues:1 sems:0 mutexes:1)
S288:24.84 sync: wireless: modem disconnect requested {cell-disconnect-begin}
S288:24.84 sync: wireless: idle {disconnecting} {transport}
S288:24.84 sync: wireless: idle {disconnected} {transport}
S288:25.29 modem: waiting for shutdown
M288:25.30 modem: wireless: idle {disconnecting} {transport}
M288:25.63 modem: powering down
M288:25.69 modem: waiting 5 secs for modem soft-powerdown quiescence
M288:30.69 usage: adding 4706+7085=11791 to sent+rcvd bytes [1822857/2040411]
M288:30.70 usage: adding 2+2=4 to TCP/TLS sessions [565/533]
M288:30.70 usage: adding 6+0=6 to sent+rcvd notes [1742/44]
M288:30.70 modem: wireless: modem now OFF {modem-off}
M288:30.71 modem: **********************************
M288:30.71 modem: active for 43 sec
M288:30.71 modem: user tx+rx=total: 1777+219=1996 (15.9% of total)
M288:30.72 modem: tls tx+rx=total: 3514+5831=9345 (overhead of 7349, 58.5% of total)
M288:30.72 modem: ppp tx+rx=total: 5119+7440=12559 (overhead of 3214, 25.6% of total)
M288:30.73 modem: ota tx+rx=total: 4706+7085=11791 (to/from tower, not to/from modem)
M288:30.73 modem: **********************************
T288:35.04 lwip: IP deactivated to conserve energy
M288:35.77 sync: wakeup: modem shutdown
M288:35.87 modem: wireless: idle {disconnected} {transport}
S288:35.89 sync: wireless: modem disconnected {cell-disconnected}
S288:36.51 sync: network: LWIP terminated (sent:0 rcvd:0) {socket-ip-term}
S288:36.53 transport: using celluar transport because GPS is needed
S288:36.54 sync: connect requested by GPS (GPS)
S288:36.55 connect: 4.71V 29.06C before comms power-on (2025-08-13T18:19:49Z UTC)
S288:36.55 transport: using celluar transport because GPS is needed
S288:36.55 apn: for a.notefile.net using apn a-notehub.com.attz
S288:36.56 sync: wireless: domain a.notefile.net using APN a-notehub.com.attz
S288:36.56 sync: wireless: starting communications {wait-module} {connecting} {transport}
S288:36.57 modem: beginning power-on sequence
S288:41.29 modem: *************** ON ***************
S288:41.29 sync: wireless: modem now ON {modem-on}
S288:41.64 journey: unless we start moving, the journey will end in 93 secs
M288:55.52 modem: suppressing registration
S288:56.16 journey: unless we start moving, the journey will end in 78 secs
M288:59.51 gpsmax: modem powered up in gps mode
M288:59.56 _log.qo: gpsmax: NMEA data being received
M288:59.56 GPS search (0 sec, 0/0 dB SNR, 0/0 sats, HDOP 0.00)
M288:59.59 modem: wireless: connected {connected-closed} {transport}
M288:59.60 _log.qo: gpsmax: requesting GPS refresh: modem’s GPS is ready
S288:59.68 sync: next wake-up due in 15m 0s to check on journey’s progress
M289:04.57 GPS search (5 sec, 45/45 dB SNR, 0/2 sats, HDOP 0.00)
M289:09.57 GPS search (10 sec, 45/45 dB SNR, 0/4 sats, HDOP 0.00)
G289:13.68 journey: unless we start moving, the journey will end in 61 secs
M289:14.57 GPS search (15 sec, 45/45 dB SNR, 0/4 sats, HDOP 0.00)
M289:19.57 GPS search (20 sec, 45/45 dB SNR, 0/5 sats, HDOP 0.00)
M289:24.66 GPS search (25 sec, 45/45 dB SNR, 0/6 sats, HDOP 0.00)
M289:24.68 _log.qo: GPS updated to 9F7JXQC8+22J8 ($GPGGA, 0 sats, 45db)
M289:24.68 gps: adding track note
S289:24.76 sync: next wake-up due in 15m 0s to check on journey’s progress
M289:24.79 track: 2025-08-13T18:20:37Z added note 1755108987:2 (4.62)
M289:24.80 sync: wakeup: gps update (no refresh needed)
S289:25.32 sync: network: LWIP terminated (sent:0 rcvd:0) {socket-ip-term}
S289:25.32 sync: wireless: modem disconnect requested {cell-disconnect-begin}
S289:25.33 sync: wireless: idle {disconnecting} {transport}
S289:25.33 sync: wireless: idle {disconnected} {transport}
S289:25.33 sync: wireless: idle {disconnecting} {transport}
S289:25.37 modem: waiting for shutdown
M289:25.48 gps: modem powering down
M289:25.53 modem: waiting 5 secs for modem soft-powerdown quiescence
G289:29.46 journey: unless we start moving, the journey will end in 45 secs
M289:30.53 modem: wireless: modem now OFF {modem-off}
M289:30.54 modem: **********************************
M289:30.54 modem: active for 53 sec
M289:30.55 modem: **********************************
M289:35.58 sync: wakeup: modem shutdown
M289:35.69 modem: wireless: idle {disconnected} {transport}
S289:35.78 sync: wireless: modem disconnected {cell-disconnected}
S289:35.79 sync: next wake-up due in 15m 0s to check on journey’s progress
More interesting findings on the “old data” topic. Look at these two track notes:
Temp has changed, but Voltage has not.
Seems like Temp belongs to the time when the tracking note was created and Voltage belongs to the time when the latest GPS fix was achieved.
Same again. Been sitting for ~24 hours on battery and not updated GPS-position once (and thus not Temp). When hooking up USB I get this:
Welcome to the Notecard In-Browser Terminal.
Start making requests below.
(For advanced info, use the ‘help’ command.)
~ Connected to serial
~ Sync Status Monitor enabled
S1483:22.56 {“cmd”:“echo”,“id”:2000000000,“text”:“hi”}
{“req”:“card.trace”,“mode”:“on”}
{“stop”:true}
~ DeviceUID dev:351077454475164 (NOTE-WBGLWT) running firmware 8.2.2.17315
Hint: A newer firmware, notecard-u5-8.2.3 (LTS8 (Latest LTS)), is available. Run ‘firmware install latest’ to update.
S1487:53.19 sync: wakeup: gps poll
S1487:53.20 sync: next wake-up due in 15m 0s to check on journey’s progress
G1487:53.28 accel: movements:44 free-falls:0 5s:1000000000000000000000000000000000000000000000000
S1488:20.64 sync: next wake-up due in 15m 0s to check on journey’s progress
G1488:20.71 accel: movements:45 free-falls:0 5s:1000001000000000000000000000000000000000000000000
G1488:21.28 accel: movements:46 free-falls:0 5s:2000001000000000000000000000000000000000000000000
G1489:17.57 journey: unless we start moving, the journey will end in 244 secs
G1490:13.86 journey: unless we start moving, the journey will end in 188 secs
G1490:13.86 sync: wakeup: gps poll
S1490:13.89 sync: next wake-up due in 15m 0s to check on journey’s progress
S1490:25.04 sync: next wake-up due in 15m 0s to check on journey’s progress
G1490:25.12 accel: movements:47 free-falls:0 5s:1000000000000000000000000200000100000000000000000
G1490:25.30 accel: movements:49 free-falls:0 5s:3000000000000000000000000200000100000000000000000
G1490:50.65 _log.qo: gpsmax: requesting initial GPS refresh: period:300s c:0 f:0 m:6
G1490:50.65 sync: wakeup: gps initiate
S1490:50.68 sync: next wake-up due in 15m 0s to check on journey’s progress
G1491:09.47 journey: unless we start moving, the journey will end in 256 secs
G1491:28.24 journey: unless we start moving, the journey will end in 238 secs
G1491:47.02 journey: unless we start moving, the journey will end in 219 secs
G1492:05.80 journey: unless we start moving, the journey will end in 200 secs
G1492:15.19 sync: wakeup: gps poll
S1492:15.22 sync: next wake-up due in 15m 0s to check on journey’s progress
G1492:24.62 journey: unless we start moving, the journey will end in 181 secs
G1492:24.62 _log.qo: gpsmax: cancelling GPS seek: no signal after 90 seconds
G1492:24.65 track: 2025-08-14T14:23:35Z added note 1755180874:2 (4.72)
G1492:24.65 sync: wakeup: gps cancel
S1492:24.67 sync: next wake-up due in 15m 0s to check on journey’s progress
G1493:20.97 journey: unless we start moving, the journey will end in 125 secs
G1494:17.26 journey: unless we start moving, the journey will end in 69 secs
More findings:
If I move the device (acceleration detected) and see that it tries to do a GPS poll in the serial monitor, then I make a manual sync straight away, it activates the GPS and get a position fix. The fix comes to late though, as the sync has already passed. Please see bellow.
info
~ Blues Wireless Notecard
~ ProductUID: se.se.karlit.tobias:tracker:tracker
~ DeviceUID: dev:351077454475164
~ Serial Number:
~ Notehub Host: a.notefile.net
~ Firmware Version: notecard-8.2.2.17315
~ SKU: NOTE-WBGLWT
~ Modem: WFM200.3.16.0
~ IMEI/MAC: 94:DE:B8:26:A0:FA
~ Provisioned: Sun Jul 27 2025 11:05:13 GMT+0200 (Central European Summer Time) (2025-07-27T09:05:13.000Z)
~ Used Over-the-Air: 4008686 bytes
~ Sync Mode: periodic
~ Sync Upload Period: 60 minutes
~ Download Period: 60 minutes
~ Notehub Status: idle (since 2025-08-14T14:51:00Z) {disconnected} {idle}
~ Last Synced: Thu Aug 14 2025 16:51:03 GMT+0200 (Central European Summer Time) (2025-08-14T14:51:03.000Z)
~ Voltage: 4.70V
~ Temperature: 30.63C
~ GPS Mode: periodic
~ Location: 55.96997811666667,12.764637233333332
~ Current Time: Thu Aug 14 2025 16:51:16 GMT+0200 (Central European Summer Time) (2025-08-14T14:51:16.000Z)
~ Boot Time: Wed Aug 13 2025 15:30:01 GMT+0200 (Central European Summer Time) (2025-08-13T13:30:01.000Z)
~ Notefiles:
~ Notefile Storage Used: 2%
~ Env: {
~ “_tri_mins”: “1440”,
~ “_comment”: “Card 1”
~ }
S1520:27.52 sync: next wake-up due in 15m 0s to check on journey’s progress
G1520:27.60 accel: movements:58 free-falls:0 5s:1000000000101000100000000000000000000000000000000
G1520:51.08 _log.qo: gpsmax: requesting initial GPS refresh: period:300s c:0 f:0 m:4
G1520:51.08 sync: wakeup: gps initiate
S1520:51.10 sync: next wake-up due in 15m 0s to check on journey’s progress
S1520:58.78 sync: next wake-up due in 15m 0s to check on journey’s progress
G1520:58.86 accel: movements:59 free-falls:0 5s:1000000100000000010100010000000000000000000000000
sync
R1521:02.21 sync: wakeup: diag sync
S1521:02.22 transport: using celluar transport because GPS is needed
S1521:02.22 transport: switched from wifi: to modem:
S1521:02.22 transport: using celluar transport because GPS is needed
S1521:02.26 sync: connect requested by explicit sync request (DATA)
S1521:02.27 connect: 4.69V 30.63C before comms power-on (2025-08-14T14:52:13Z UTC)
S1521:02.28 transport: using celluar transport because GPS is needed
S1521:02.28 apn: for a.notefile.net using apn a-notehub.com.attz
S1521:02.28 sync: wireless: domain a.notefile.net using APN a-notehub.com.attz
S1521:02.29 sync: wireless: starting communications {wait-module} {connecting} {transport}
S1521:02.30 modem: beginning power-on sequence
S1521:07.01 modem: *************** ON ***************
S1521:07.02 sync: wireless: modem now ON {modem-on}
S1521:07.37 sync: wakeup: gps poll
S1521:07.42 env: updated _state_vars_net
S1521:07.42 env: dfu updated
M1521:20.78 modem: powered up in data mode
M1521:23.00 modem: wireless: waiting for wireless service {wait-service} {connecting} {transport}
M1521:24.94 modem: wireless: waiting for wireless service 23 sec [----] {cell-registration-wait}
M1521:27.55 modem: wireless: waiting for data service {wait-data} {connecting} {transport}
M1521:27.59 lwip: tcp task activated
S1521:27.94 lwip: setting wideband timeouts
T1521:28.85 tcpip: network: IP local:10.68.62.102 remote:10.64.64.64
T1521:28.86 tcpip: network: IP connect_status: connected (0)
S1521:28.86 sync: network: IP socket connect: success in 0 sec (sent:236 rcvd:257)
S1521:28.87 lwip: opened
S1521:28.87 sync: network: notebox open PPP (sent:236 rcvd:229) {socket-ip-init}
S1521:28.88 sync: project: opening notehub session using product UID product:se.se.karlit.tobias:tracker:tracker
S1521:28.88 sync: notehub: asking discovery service to assign a notehub session handler
S1521:28.88 sync: network: opening unidirectionally-authenticated secure session to a.notefile.net:8086 {socket-open-session}
S1521:28.89 sync: network: resolving tracker.radenholt.tobias.karlite.se.product.notefile.net
T1521:29.28 lwip: $$$ received unexpected UDP packet
S1521:29.55 sync: network: resolving a.notefile.net
S1521:29.87 sync: network: DNS lookup of a.notefile.net yielded 10.0.66.13 {socket-dns-success}
S1521:29.87 sync: network: connecting to 10.0.66.13:8086 {socket-connecting}
S1521:30.19 sync: network: connected to 10.0.66.13 (sent:94 rcvd:113) {socket-connected}
S1521:30.30 hsm: secure element enabled
S1521:30.41 sync: network: TLS using ECC curve NIST P384
S1521:30.41 sync: network: TLS cert issuer: /C=NL/O=STMicroelectronics nv/CN=STM STSAFE-A PROD CA 25
S1521:30.41 sync: network: TLS cert subject: /CN=NB1/serialNumber=0209a02ba039dc52c60139
S1521:30.42 sync: network: connect using TLS {socket-tls-connecting}
S1521:31.00 sync: network: TLS is verifying the service
S1521:31.03 sync: network: TLS domain (a.notefile.net) matches hub’s certificate (.notefile.net) through wildcard
S1521:32.28 sync: network: connected using TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 {socket-tls-connected}
S1521:32.28 hsm: secure element disabled
S1521:32.29 sync: network: tls authenticated (sent:954 rcvd:2887) {socket-tls}
S1521:32.30 sync: network: session opened {socket-opened-session}
S1521:32.30 tower: req: 240,1,807,26352160,-64,9,-94,-13,lte,0,2,89011704274021110862,a-notehub.com.attz,10.68.62.102
S1521:32.30 ntn: config pv1,0,chacha20-poly1305,(64)
S1521:32.31 discover session handler for dev:351077454475164 product:se.se.karlit.tobias:tracker:tracker
S1521:33.24 sync: network: request socket shutdown {socket-disconnected}
S1521:33.25 sync: network: session closed {socket-closed-session}
S1521:33.29 sync: notehub: discovery service assigned a session handler
S1521:33.29 ntn: handler 216.245.146.112:8089,256,YN,10TPM,1,c32db66fdb45
S1521:33.30 sync: notehub: time is behind local time by -10 seconds
S1521:33.30 sync: notehub: adjusting time from notehub (-10 seconds)
S1521:33.30 time-set: 1755183174 2025-08-14T14:52:54Z
S1521:33.31 notehub time: 1755183174
S1521:33.31 sync: notehub: session ticket issued for 604800 sec (now:1755183174 expires:1755787974)
S1521:33.32 sync: network: opening unidirectionally-authenticated secure session to 10.0.34.7:23080 {socket-open-session}
S1521:33.32 sync: network: connecting to 10.0.34.7:23080 {socket-connecting}
S1521:34.45 sync: network: TLS is verifying the service
S1521:34.47 sync: network: TLS domain (a.notefile.net) matches hub’s certificate (.notefile.net) through wildcard
S1521:35.70 sync: network: connected using TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256 {socket-tls-connected}
S1521:35.70 hsm: secure element disabled
S1521:35.71 sync: network: tls authenticated (sent:953 rcvd:2886) {socket-tls}
S1521:35.71 sync: network: session opened {socket-opened-session}
S1521:35.72 tower: req: 240,1,807,26352160,-64,9,-94,-13,lte,0,2,89011704274021110862,a-notehub.com.attz,10.68.62.102
S1521:35.72 sync: notehub: opened notehub {notehub-connected}
S1521:35.72 sync: sync triggered by explicit sync request (_env.dbs)
S1521:35.73 sync: work: begin (anything pending) {sync-begin}
S1521:35.73 sync: request: get notebox change summary
S1521:35.73 journey: unless we start moving, the journey will end in 264 secs
S1521:36.24 tower: rsp: 9F7JXQ63+924W|SE|Europe/Stockholm|CEST|120|Skåne County
S1521:36.24 399 req + 75 rsp = 474 byte network transaction
S1521:36.24 sync: request: resetting all trackers because of session ID mismatch
S1521:36.32 sync: work to be done:
S1521:36.32 upload-notebox
S1521:36.33 upload-notebox
S1521:36.33 download-notebox
S1521:36.34 upload _env.dbs
S1521:36.34 upload _health.qo
S1521:36.35 upload _health_host.qo
S1521:36.36 upload _log.qo
S1521:36.36 upload _temp.qo
S1521:36.37 upload _track.qo
S1521:36.38 download _env.dbs
S1521:36.41 checkpointAllNoteboxes {checkpointed} _log.qo
I1521:36.41 inbound: listening for notehub changes
S1521:36.64 checkpointAllNoteboxes {checkpointed} _track.qo
S1521:36.79 checkpointAllNoteboxes {checkpointed} _notefiles.json
S1521:36.91 checkpointAllNoteboxes {checkpointed} _temp.qo
S1521:37.04 checkpointAllNoteboxes {checkpointed} _health_host.qo
S1521:37.16 checkpointAllNoteboxes {checkpointed} _health.qo
S1521:37.31 checkpointAllNoteboxes {checkpointed} _env.dbs
S1521:37.42 sync: work: upload-notebox (20 changes) {sync-get-local-changes}
S1521:37.45 sync: request: merge notebox
S1521:37.94 1130 req + 1 rsp = 1131 byte network transaction
S1521:38.10 checkpointAllNoteboxes {checkpointed} _notefiles.json
S1521:38.21 sync: request: get notebox changes
S1521:38.71 6 req + 1101 rsp = 1107 byte network transaction
S1521:38.72 sync: work: download-notebox (20 changes) {sync-get-remote-changes}
S1521:38.75 sync: request: update notebox change tracker
S1521:39.09 10 req + 1 rsp = 11 byte network transaction
S1521:39.14 sync: work: upload _env.dbs (5 changes) {sync-get-local-changes}
S1521:39.16 sync: request: merge notefile: _env.dbs
S1521:39.70 2124 req + 1 rsp = 2125 byte network transaction
S1521:40.04 sync: request: get notefile changes: _env.dbs
S1521:40.65 16 req + 2202 rsp = 2218 byte network transaction
S1521:40.65 sync: work: download _env.dbs (5 changes) {sync-get-remote-changes}
S1521:40.67 sync: request: update change tracker: _env.dbs
S1521:41.01 20 req + 1 rsp = 21 byte network transaction
S1521:41.04 sync: work to be done:
S1521:41.04 upload-notebox
S1521:41.05 upload _env.dbs
S1521:41.05 upload _health.qo
S1521:41.06 upload _health_host.qo
S1521:41.07 upload _log.qo
S1521:41.07 upload _temp.qo
S1521:41.08 upload _track.qo
S1521:41.09 download _env.dbs
S1521:41.25 sync: request: get notefile changes: _env.dbs
S1521:41.61 16 req + 26 rsp = 42 byte network transaction
S1521:41.61 sync: work: completed {sync-end}
S1521:41.61 sync: sync triggered by explicit sync request (_env.dbs)
S1521:41.62 sync: work: begin (anything pending) {sync-begin}
S1521:41.62 sync: request: get notebox change summary
S1521:41.98 18 req + 1 rsp = 19 byte network transaction
S1521:42.03 checkpointAllNoteboxes {checkpointed} _notefiles.json
S1521:42.23 sync: work: completed (nothing was pending) {sync-end}
S1521:42.24 sync: advancing last sync time from 14:51:01Z to 14:53:02Z
S1521:42.71 sync: network: request socket shutdown {socket-disconnected}
S1521:42.72 sync: network: session closed {socket-closed-session}
S1521:42.72 sync: notehub: closed notehub {notehub-disconnected}
S1521:42.72 lwip: sending RST to remote host packet:31707 ackno:1681068100
S1521:43.25 lwip: closed
S1521:43.25 sync: network: LWIP terminated (sent:74 rcvd:18) {socket-ip-term}
S1521:43.26 lwip: tcp task deactivated (msgs:0 queues:1 sems:0 mutexes:1)
S1521:43.26 sync: wireless: modem disconnect requested {cell-disconnect-begin}
S1521:43.27 sync: wireless: idle {disconnecting} {transport}
S1521:43.27 sync: wireless: idle {disconnected} {transport}
S1521:43.71 modem: waiting for shutdown
M1521:43.72 modem: wireless: idle {disconnecting} {transport}
M1521:44.03 modem: powering down
M1521:44.08 modem: waiting 5 secs for modem soft-powerdown quiescence
M1521:49.08 usage: adding 7895+11151=19046 to sent+rcvd bytes [1902455/2125277]
M1521:49.09 usage: adding 2+2=4 to TCP/TLS sessions [592/560]
M1521:49.09 usage: adding 5+0=5 to sent+rcvd notes [1812/44]
M1521:49.10 modem: wireless: modem now OFF {modem-off}
M1521:49.10 modem: **********************************
M1521:49.11 modem: active for 46 sec
M1521:49.11 modem: user tx+rx=total: 4219+3562=7781 (39.0% of total)
M1521:49.11 modem: tls tx+rx=total: 6161+9348=15509 (overhead of 7728, 38.7% of total)
M1521:49.12 modem: ppp tx+rx=total: 8388+11588=19976 (overhead of 4467, 22.4% of total)
M1521:49.12 modem: ota tx+rx=total: 7895+11151=19046 (to/from tower, not to/from modem)
M1521:49.13 modem: **********************************
T1521:53.47 lwip: IP deactivated to conserve energy
M1521:54.16 sync: wakeup: modem shutdown
M1521:54.27 modem: wireless: idle {disconnected} {transport}
S1521:54.31 sync: wireless: modem disconnected {cell-disconnected}
S1521:54.42 journey: unless we start moving, the journey will end in 245 secs
S1521:54.93 sync: network: LWIP terminated (sent:0 rcvd:0) {socket-ip-term}
S1521:54.95 transport: using celluar transport because GPS is needed
S1521:54.96 sync: connect requested by GPS (GPS)
S1521:54.97 connect: 4.70V 30.63C before comms power-on (2025-08-14T14:53:15Z UTC)
S1521:54.97 transport: using celluar transport because GPS is needed
S1521:54.98 apn: for a.notefile.net using apn a-notehub.com.attz
S1521:54.98 sync: wireless: domain a.notefile.net using APN a-notehub.com.attz
S1521:54.99 sync: wireless: starting communications {wait-module} {connecting} {transport}
S1521:55.00 modem: beginning power-on sequence
S1521:59.71 modem: *************** ON ***************
S1521:59.72 sync: wireless: modem now ON {modem-on}
S1522:09.38 journey: unless we start moving, the journey will end in 230 secs
M1522:13.30 modem: suppressing registration
M1522:17.23 gpsmax: modem powered up in gps mode
M1522:17.29 _log.qo: gpsmax: NMEA data being received
M1522:17.29 GPS search (0 sec, 0/0 dB SNR, 0/0 sats, HDOP 0.00)
M1522:17.31 modem: wireless: connected {connected-closed} {transport}
M1522:17.31 _log.qo: gpsmax: requesting GPS refresh: modem’s GPS is ready
S1522:17.36 sync: next wake-up due in 15m 0s to check on journey’s progress
M1522:22.99 GPS search (5 sec, 39/39 dB SNR, 0/1 sats, HDOP 0.00)
G1522:26.70 journey: unless we start moving, the journey will end in 213 secs
M1522:27.99 GPS search (10 sec, 40/40 dB SNR, 0/2 sats, HDOP 0.00)
M1522:32.99 GPS search (15 sec, 39/40 dB SNR, 0/2 sats, HDOP 0.00)
M1522:37.99 GPS search (20 sec, 40/40 dB SNR, 0/3 sats, HDOP 0.00)
M1522:42.99 GPS search (25 sec, 40/40 dB SNR, 0/3 sats, HDOP 0.00)
G1522:45.48 journey: unless we start moving, the journey will end in 194 secs
M1522:47.99 GPS search (30 sec, 40/40 dB SNR, 0/3 sats, HDOP 0.00)
M1522:52.99 GPS search (35 sec, 39/40 dB SNR, 0/5 sats, HDOP 0.00)
M1522:58.01 GPS search (40 sec, 40/40 dB SNR, 0/5 sats, HDOP 0.00)
M1523:03.87 GPS search (46 sec, 39/40 dB SNR, 0/6 sats, HDOP 0.00)
G1523:04.25 journey: unless we start moving, the journey will end in 175 secs
M1523:08.87 GPS search (51 sec, 39/40 dB SNR, 0/8 sats, HDOP 0.00)
M1523:13.87 GPS search (56 sec, 39/40 dB SNR, 0/8 sats, HDOP 0.00)
M1523:16.88 _log.qo: GPS updated to 9F7JXQ97+XVWG ($GPGGA, 2 sats, 39db)
M1523:16.89 gps: adding track note
S1523:16.97 sync: next wake-up due in 15m 0s to check on journey’s progress
M1523:17.00 track: 2025-08-14T14:54:37Z added note 1755182691:2 (4.61)
M1523:17.01 sync: wakeup: gps update (no refresh needed)
S1523:17.53 sync: network: LWIP terminated (sent:0 rcvd:0) {socket-ip-term}
S1523:17.53 sync: wireless: modem disconnect requested {cell-disconnect-begin}
S1523:17.54 sync: wireless: idle {disconnecting} {transport}
S1523:17.54 sync: wireless: idle {disconnected} {transport}
S1523:17.55 sync: wireless: idle {disconnecting} {transport}
S1523:17.59 modem: waiting for shutdown
M1523:17.69 gps: modem powering down
M1523:17.74 modem: waiting 5 secs for modem soft-powerdown quiescence
G1523:21.67 journey: unless we start moving, the journey will end in 158 secs
M1523:22.75 modem: wireless: modem now OFF {modem-off}
M1523:22.75 modem: **********************************
M1523:22.75 modem: active for 87 sec
M1523:22.76 modem: **********************************
M1523:27.80 sync: wakeup: modem shutdown
M1523:27.90 modem: wireless: idle {disconnected} {transport}
S1523:27.99 sync: wireless: modem disconnected {cell-disconnected}
S1523:28.00 sync: next wake-up due in 15m 0s to check on journey’s progress
G1524:24.32 journey: unless we start moving, the journey will end in 95 secs
G1525:20.61 journey: unless we start moving, the journey will end in 39 secs
G1526:16.88 journey: completed 1755183457 journey
G1526:16.89 sync: wakeup: journey completed
Hey @TobiasR,
Thanks for testing this so thoroughly. I tend to agree that if your device is reliably getting a position after a manual sync, then something else must be going on.
First, can you share the configuration you’re currently using for both card.location.mode and card.location.track? That’d be good to know as I look through these logs.
Second, if I have a few ideas you can try out.
-
Try disabling Wi-Fi with
{"req":"card.transport","method":"cell"}. I doubt this is causing your problems, but we’ve had some issues in the past with people using Wi-Fi as a transport with GPS/GNSS enabled—and it’d be good to rule that out. -
For testing purposes, update your Notecard to use the following config.
{
"req": "card.location.track",
"start": true,
"heartbeat": true,
"sync": true,
"hours": 1
}
By default, Notecard only take new tracking readings if the device has moved (as detected by its onboard accelerometer). By setting heartbeat and a low hours value you’ll get readings every hour even if the device is stationary. And by setting sync: true those readings will be immediately synchronized to Notehub.
Hopefully we can learn more about what’s going on with some of these config changes.
TJ
Thank you for your suggestions. Will have to come back in a few days when I have had time to look into it further.
